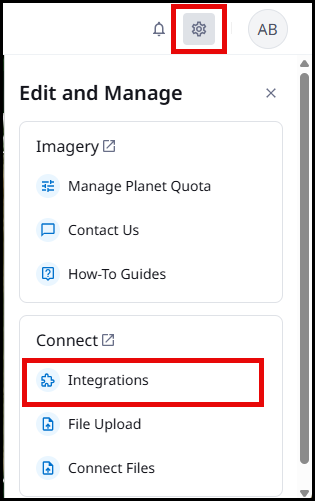

Data Layers uses a Cropwise Connect integration to view and compare spraying and spreading applications, planting and yield data. Cropwise Connect can be used to set up a variety of integrations, such as John Deere, CNH, AgFiniti, Trimble and a direct upload option. To create the integration, log into Cropwise Imagery and select the gear icon in the upper right for options. Select Integrations to choose the source of data to import.
Once the integration is set, it may take up to 24 hours for the data to process, and will update daily as more data is available from the integration source. After the data is processed it will display on the Yield Analysis and Data Layers tabs. Choose the Farm and Field to view the data.

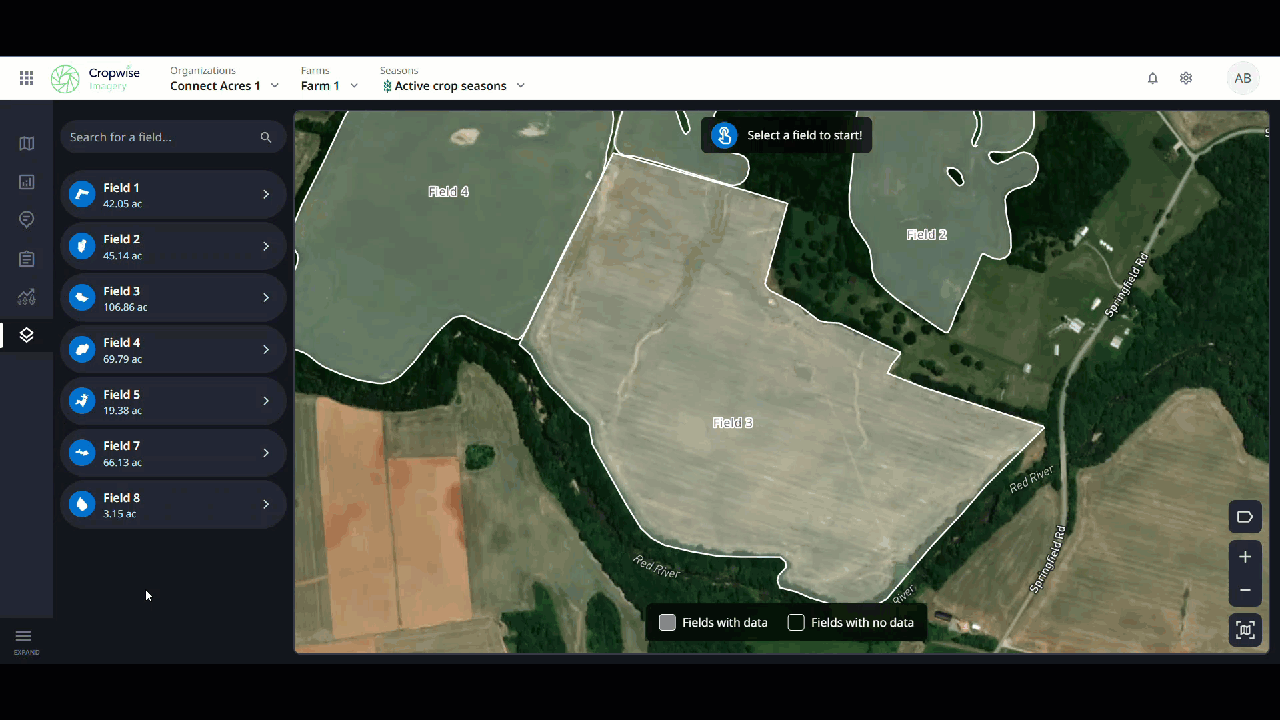

After selecting the field in Data Layers, navigate between the different applications on the field selecting within the application list or using the drop down to swich to a different application. To switch fields , select the Fields drop down at the top, center of the page.
Another option is to compare images side by side. Select on one application to display on the left. Then choose the Map icon in the upper right corner of the map and select Two Images. On the right side select the application to display on the right. Switch between different applications on the left or right, or select a different field to make comparisons.
When data is not availbe to display on the whole field, the part of the field without application data will be indicated with stripes.
For software support or any questions you may have, please reach out to our Customer Success team.
